TIG 500
GTAW/TIGExplore our GTAW/TIG solutions, providing high-quality welds for thin materials, with exceptional control, performance, and versatility
GTAW/TIGExplore our GTAW/TIG solutions, providing high-quality welds for thin materials, with exceptional control, performance, and versatility

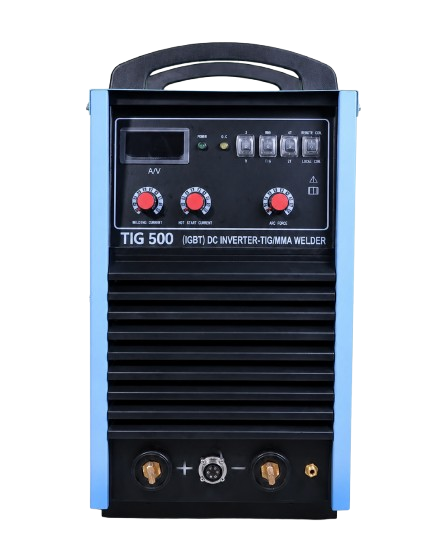

The Bweld TIG 500 is a powerful industrial-grade welding machine designed for demanding applications. Featuring advanced inverter technology, it ensures stable welding current and consistent arc length, even under fluctuating power conditions. With excellent self-adjustability, low spatter, and high deposition efficiency, it delivers precise and efficient welding. Remote control functionality allows for convenient parameter adjustments from a distance. Compact yet robust, the TIG 500 combines high power, energy efficiency, and superior performance for professional use.
Description
Tig Torch
Earthing Cable with clamp
Argon regulator, flow meter.
Specification
| Technical Specification | TIG 500 |
|---|---|
| Supply voltage (V) | 3 phase 415V |
| Rated Input Current(A) | 22A |
| Rated Input Power(KVA) | 24KVA |
| Welding Current Range(A) | 40-500A |
| No Load Voltage(V) | 74V |
| Frequency(Hz) | 50 Hz |
| Power Factor | O.93 |
| Duty Cycle(%) | 60% |
| Efficiency | 85% |
| Insulation Class | H |
| Cooling Mode | Air Cooled |
| Protection Class | IP21S |
| Suitable Tungsten( mm ) | 1.6-4.0mm |
| Weight(Kg)(approximate) | 30KG |
