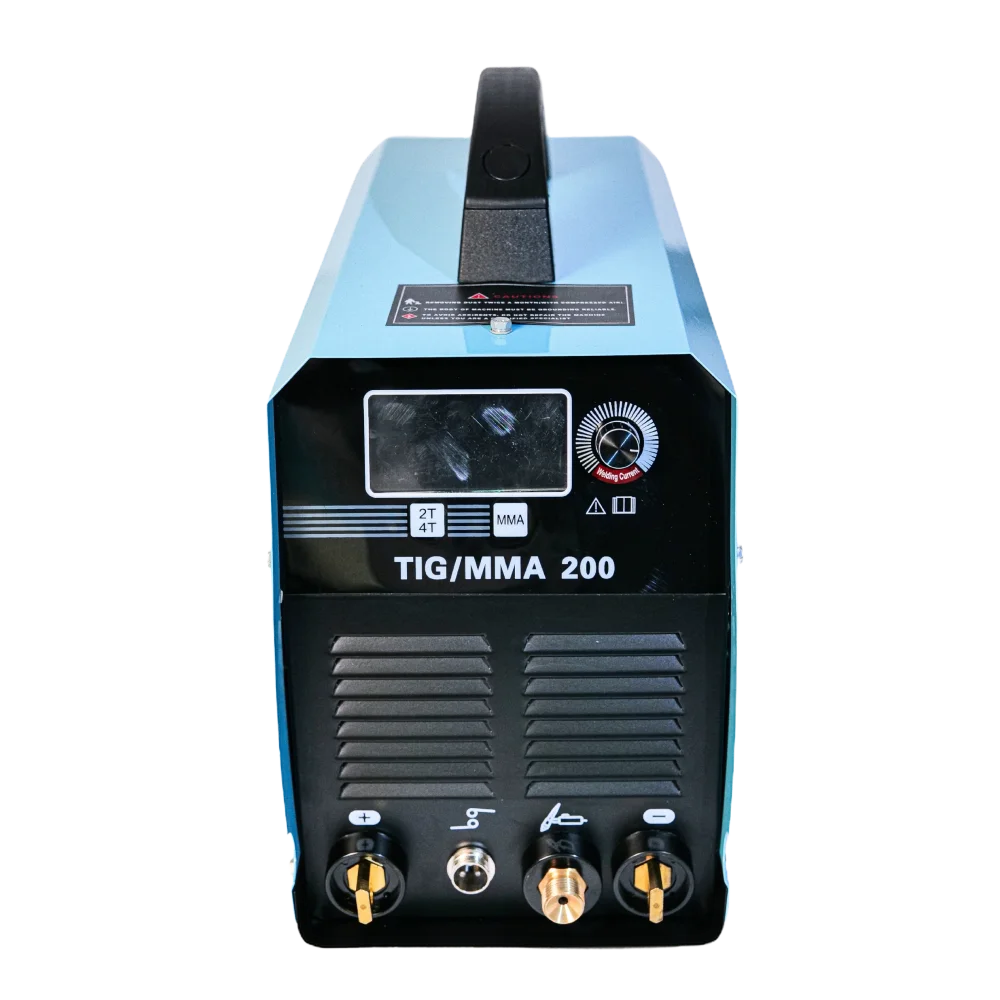

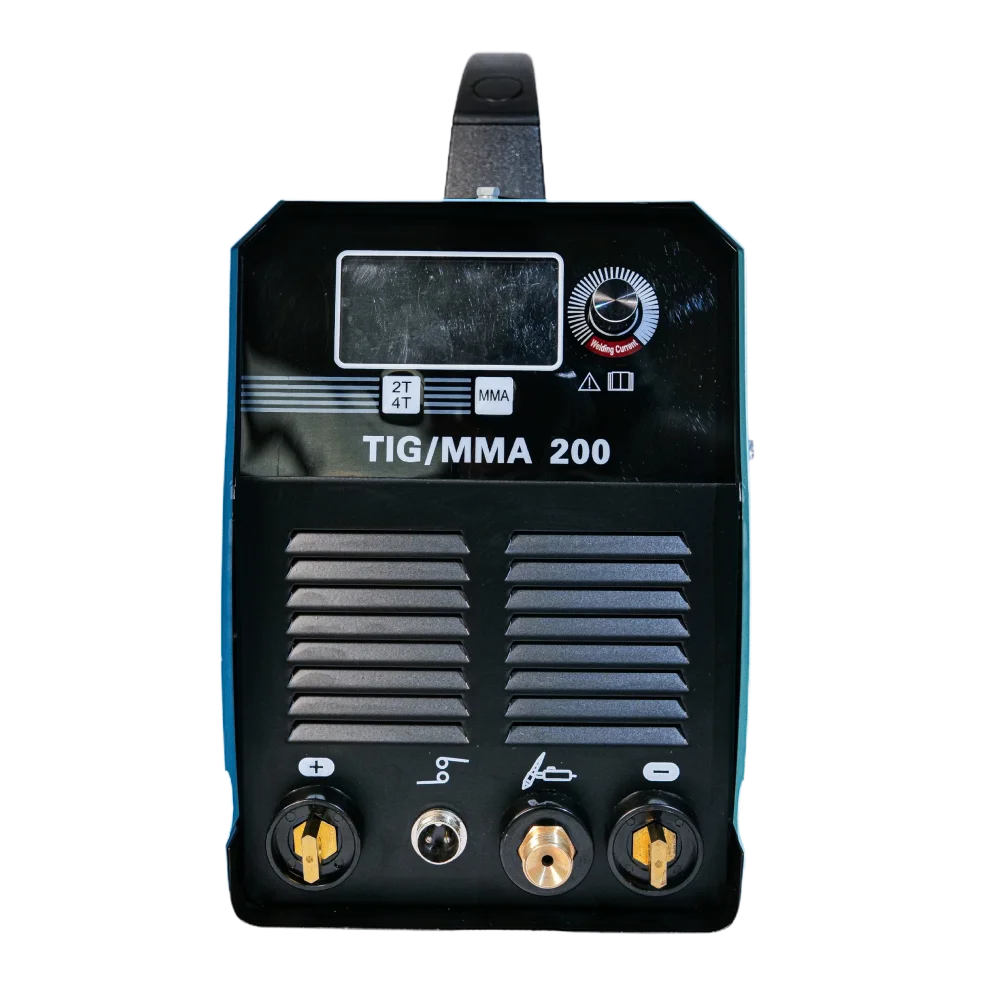

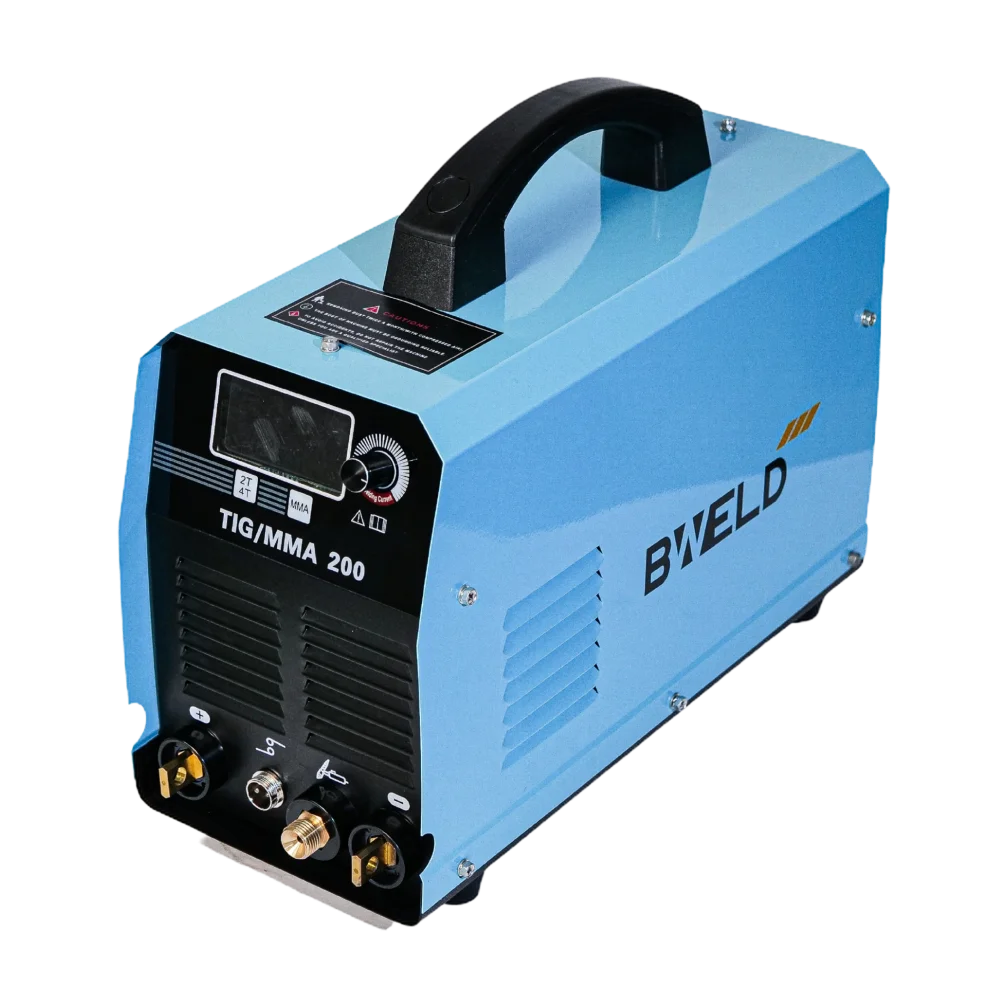

Bweld TIG 200 Welding Machine

The Bweld TIG 200 is a cutting-edge welding solution featuring advanced inverter technology for exceptional welding current stability, consistent arc length, and adaptability to fluctuating power supply. This lightweight, portable machine ensures easy arc starting, minimal spatter, and high deposition efficiency. Equipped with remote control for adjustable parameters at extended distances, it delivers energy efficiency, high power factor, and professional-grade welding performance.

Brochure

Description

Key Features

  • IGBT based inverter technology.
  • Auto protection of over voltage and over current.
  • Automatic self balancing ability when voltage is wavering within a certain range.
  • High welding quality, deep bath and strong strength.
  • WIth 2T/4T mode, it reduces the working intensity.
  • Fixed programmed post-flow timer save tungsten life.
  • Supereme ignition features with long Tig torches also.

Standard Accessories includes

Tig Torch

Earthing Cable with clamp

Argon regulator, flow meter.

Specification

Technical Specification TIG 200
Supply voltage (V) 1 phase 230V
Rated Input Current(A) 12A
Rated Input Power(KVA) 3.4KVA
Welding Current Range(A) 10-200A
No Load Voltage(V) 42V
Frequency(Hz) 50 Hz
Power Factor O.93
Duty Cycle(%) 60%
Efficiency 85%
Insulation Class H
Cooling Mode Air Cooled
Protection Class IP21S
Suitable Tungsten( mm ) 1.6-2.5mm
Weight(Kg)(approximate) 7KG
